Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
TBLO

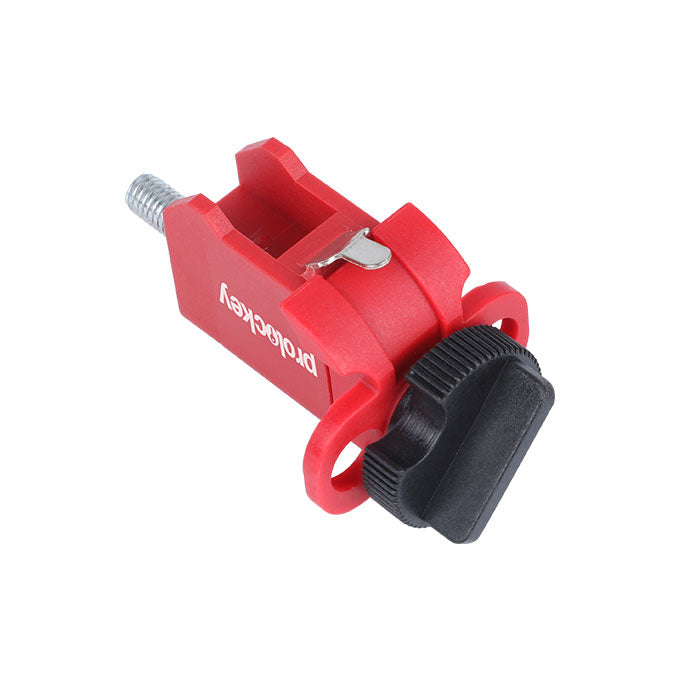

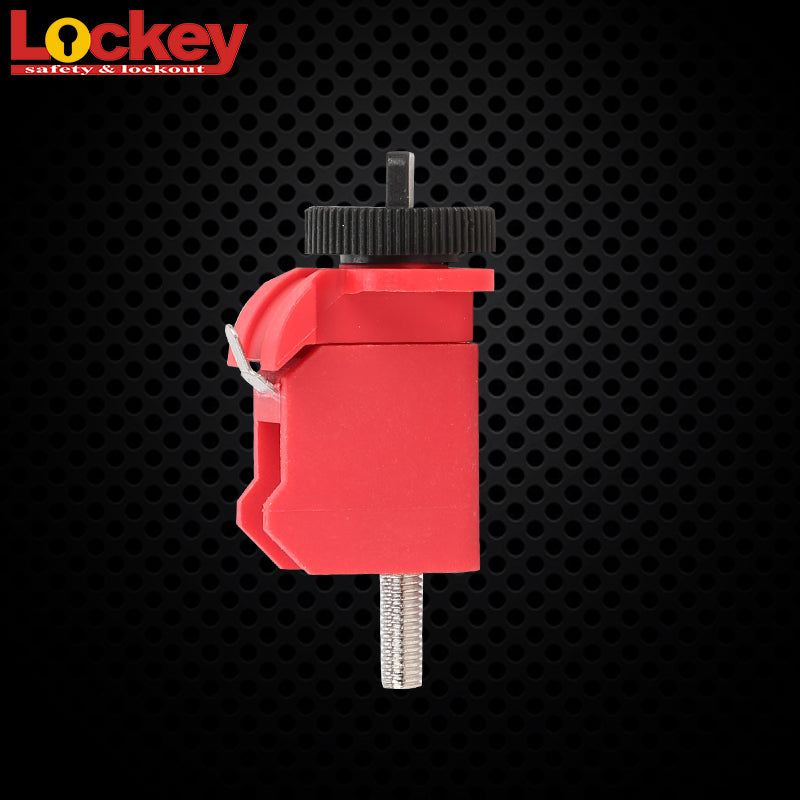

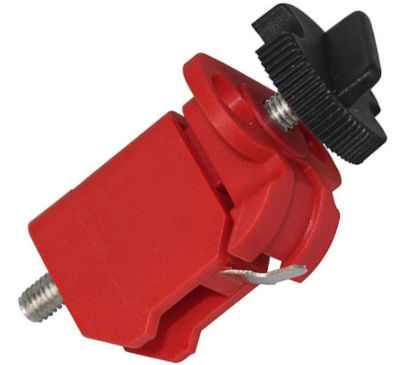

Tie-Bar Miniature Circuit Breaker Lockout | TBLO
$0.75 / unit
Product details
A tie-bar lockout secures a compatible miniature circuit breaker without requiring holes in the breaker handle.
Product features
- Thumb-operated installation.
- Fits a tie-bar interface.
- Accepts a personal padlock.
Specifications
| Model | TBLO |
|---|---|
| Material | Reinforced nylon PA |
| Maximum padlock shackle diameter | 7 mm |
| Installation | Tool-free |
| Breaker interface | Tie bar; no breaker holes required |
Selection notes
Select for the tie-bar geometry of the breaker.
Product details
More than the device
Support for the complete requirement.
Share the application, quantity, destination and customization details. PROLOCKEY can help coordinate product selection, configuration and supporting documents.
OEM & customization
Discuss color, logo, laser marking, labeling, packaging, keying and project-specific combinations.
Applicable documents
Confirm product specifications, certificates, test reports and documentation relevant to the item and market.
Order coordination
Align quantity, production, packing, freight and export requirements with the sales and operations team.
Certification scope and lead time vary by product and order. Ask the sales team to confirm the applicable documentation and schedule before purchase.
