ABVL05

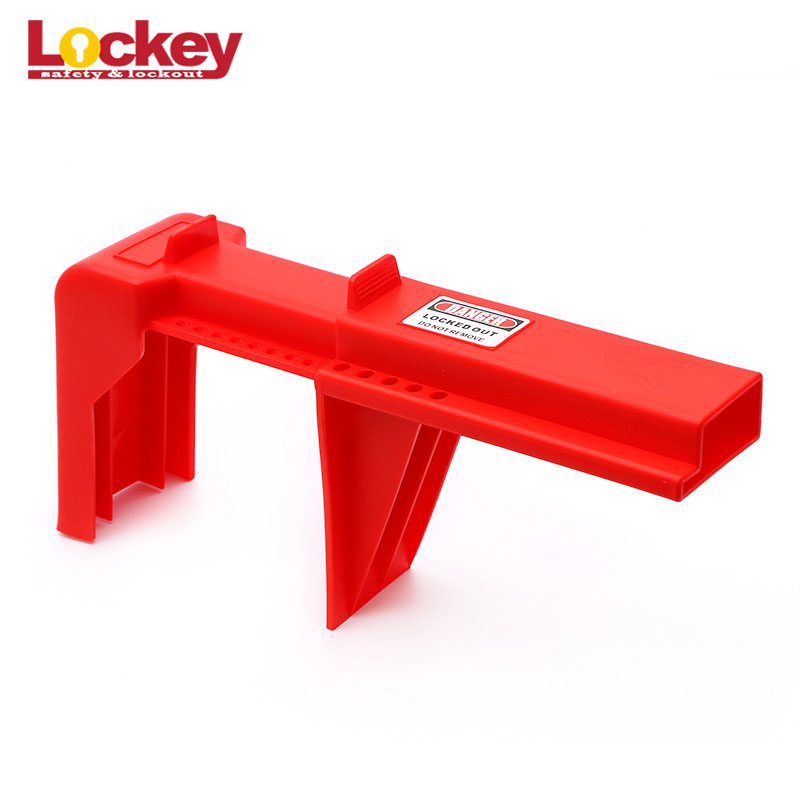

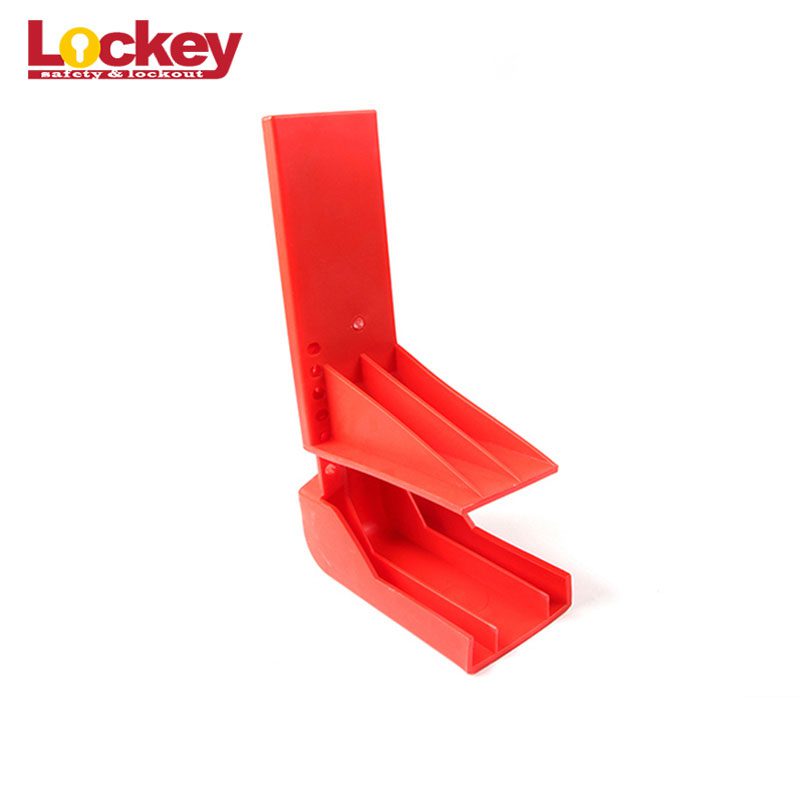

Adjustable Ball Valve Lockout — ABVL05
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Adjustable Ball Valve Lockout is model ABVL05. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from ABS.withstand temperature from -20℃ to +90℃.
- Removable insert accommodates a wide range of handle designs and dimensions.
- It has an auxiliary rear plate, which can lock out double roll valves.
Specifications
| Model | ABVL05 |
|---|---|
| Material | ABS750 |
| Service Temperature Range °F | -20℃-90℃ |
| Lock Holes | 8mm |
| Total Length | 301mm |
| Body Width | 102mm |
| Body Height | 202mm |
| Product Net Weight | 0.62kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
