Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
CBL42M
Grip Tight Circuit Breaker Lockout — CBL42M
Pricing is provided by quotation based on quantity, specification, and destination.
Product details

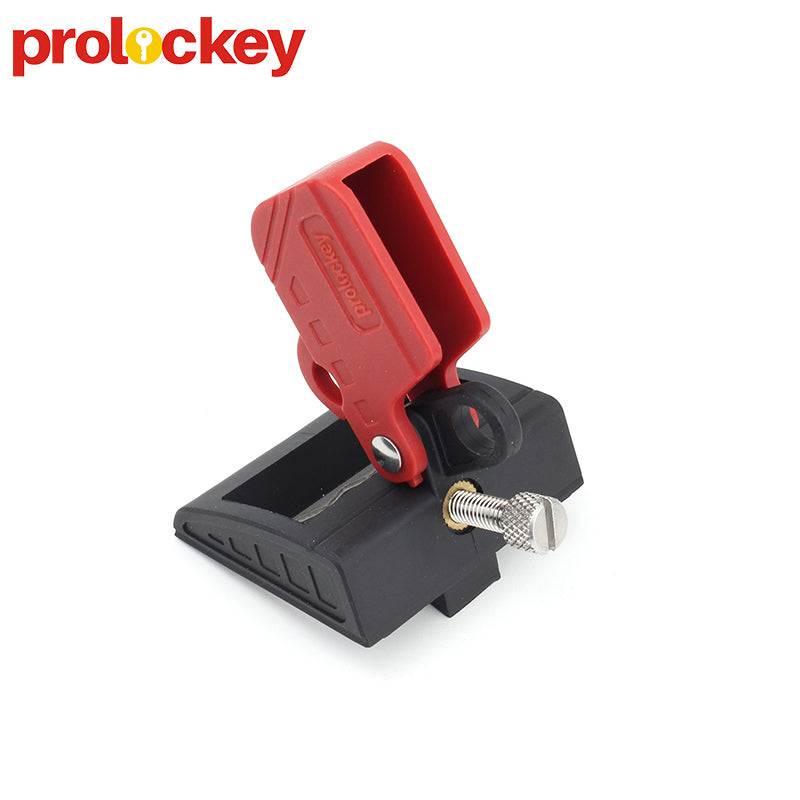

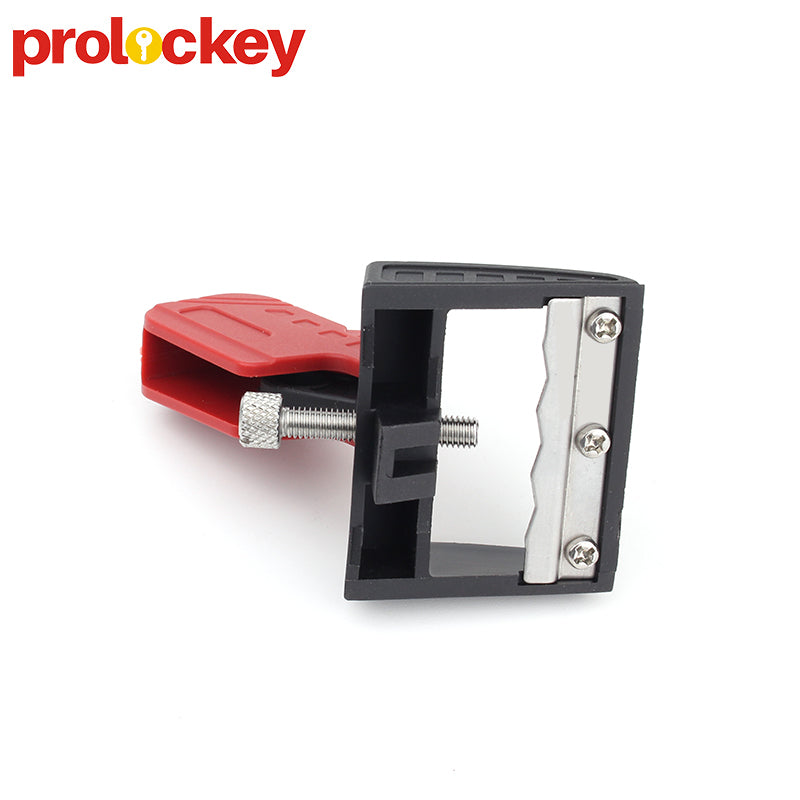

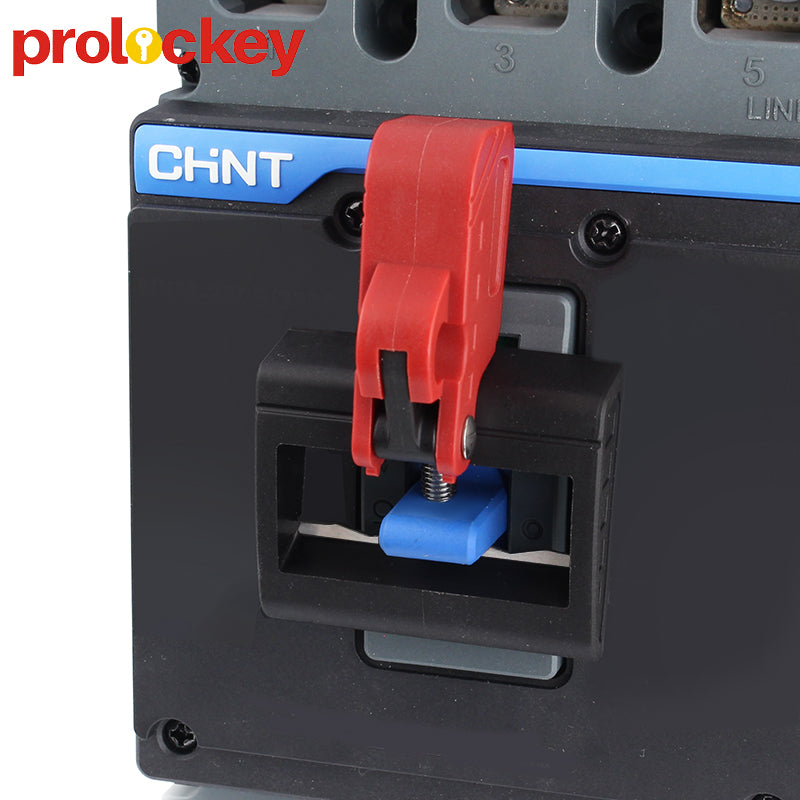

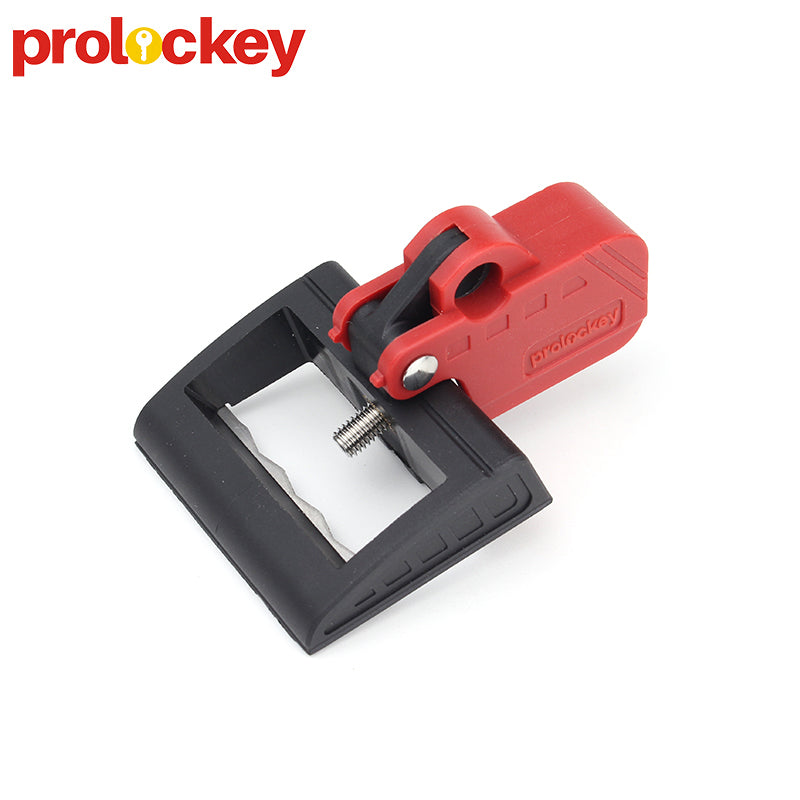

The PROLOCKEY Grip Tight Circuit Breaker Lockout is model CBL42M. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from engineering plastic strengthened nylon PA,temperature resistance -20℃ to +120℃.
- Easily installed, no tools needed.
- Can take a padlock with shackle diameter up to 8mm.
Specifications
| Model | CBL42M |
|---|---|
| Material | PA6 |
| Service Temperature Range °F | -20℃-120℃ |
| Lock Holes | 8mm |
| Suitable for | 100A – 250A molded case circuit breakers |
| Body Width | 40.9mm |
| Screw Diameter | 14.3mm |
| Product Net Weight | 0.05kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
Product details
More than the device
Support for the complete requirement.
Share the application, quantity, destination and customization details. PROLOCKEY can help coordinate product selection, configuration and supporting documents.
OEM & customization
Discuss color, logo, laser marking, labeling, packaging, keying and project-specific combinations.
Applicable documents
Confirm product specifications, certificates, test reports and documentation relevant to the item and market.
Order coordination
Align quantity, production, packing, freight and export requirements with the sales and operations team.
Certification scope and lead time vary by product and order. Ask the sales team to confirm the applicable documentation and schedule before purchase.
