ECL11
Disconnector Lockout — ECL11
Pricing is provided by quotation based on quantity, specification, and destination.
Product details

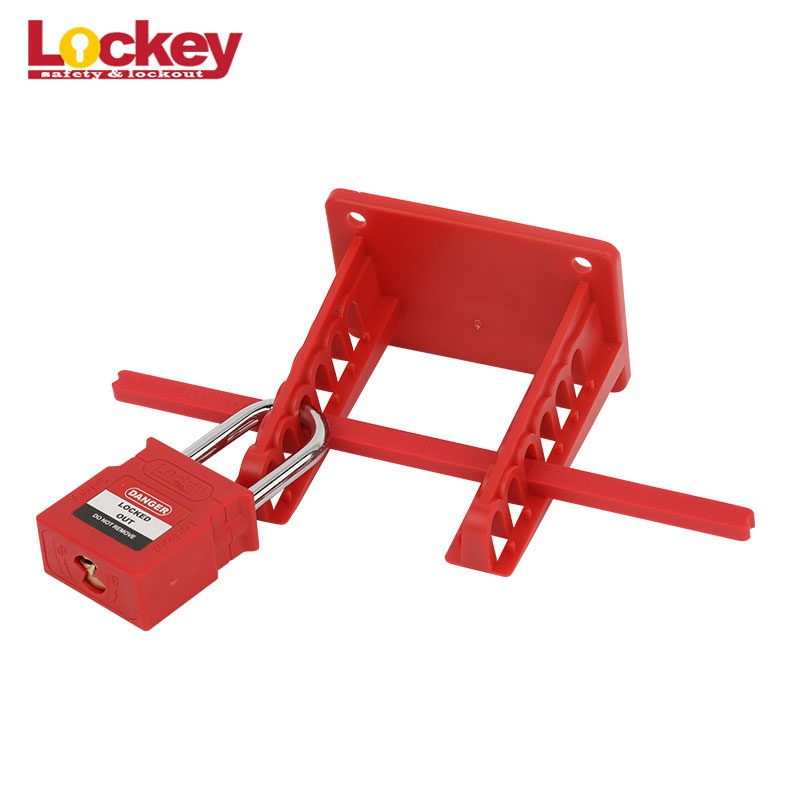

The PROLOCKEY Disconnector Lockout is model ECL11. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- The base is made of engineering plastic ABS and the main rod is made of nylon PA.
- The back self-adhesive track can be permanently fixed to the switchboard, simply clean the disk and paste it, without drilling.
- Lock the 35-85mm gate.

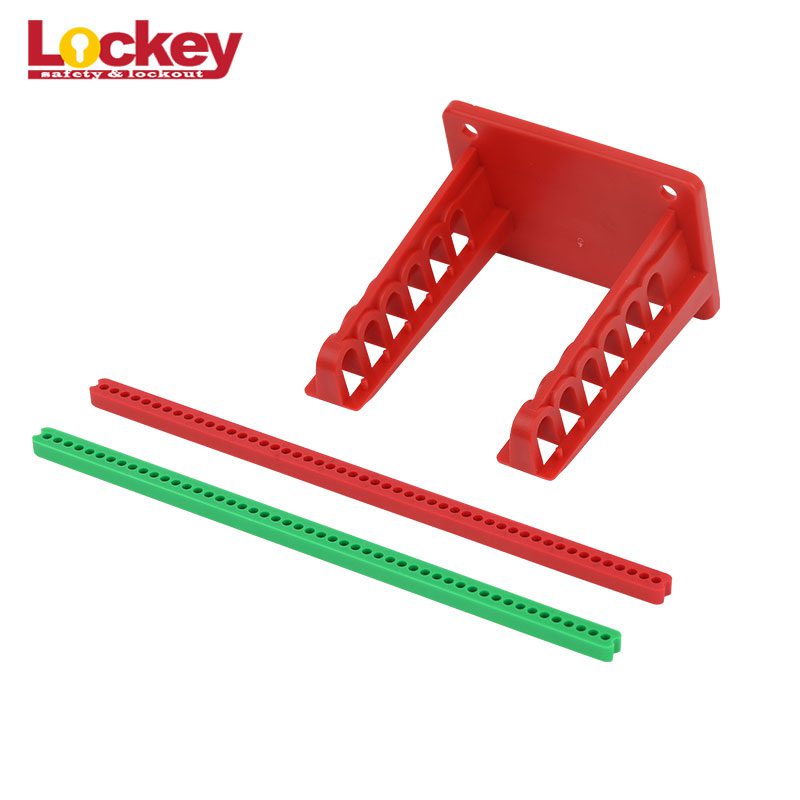

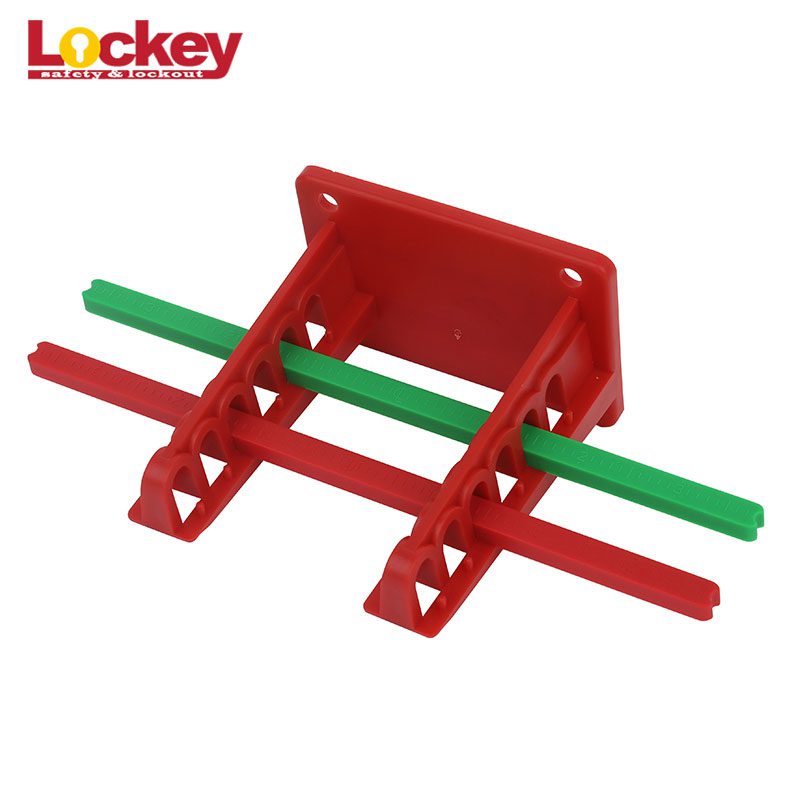

- The red group bar indicates that the switch is off; green indicates that the switch is on.
Specifications
| Model | ECL11 |
|---|---|
| Material | ABS750 |
| Service Temperature Range °F | – 20℃-90℃ |
| Lock Holes | 8.5mm |
| Total Length | 90mm |
| Body Width | 97mm |
| Body Height | 60mm |
| Rod Length | 194mm |
| Product Net Weight | 0.058kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
