Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
LS03
Lockout Station — LS03
Pricing is provided by quotation based on quantity, specification, and destination.
Product details

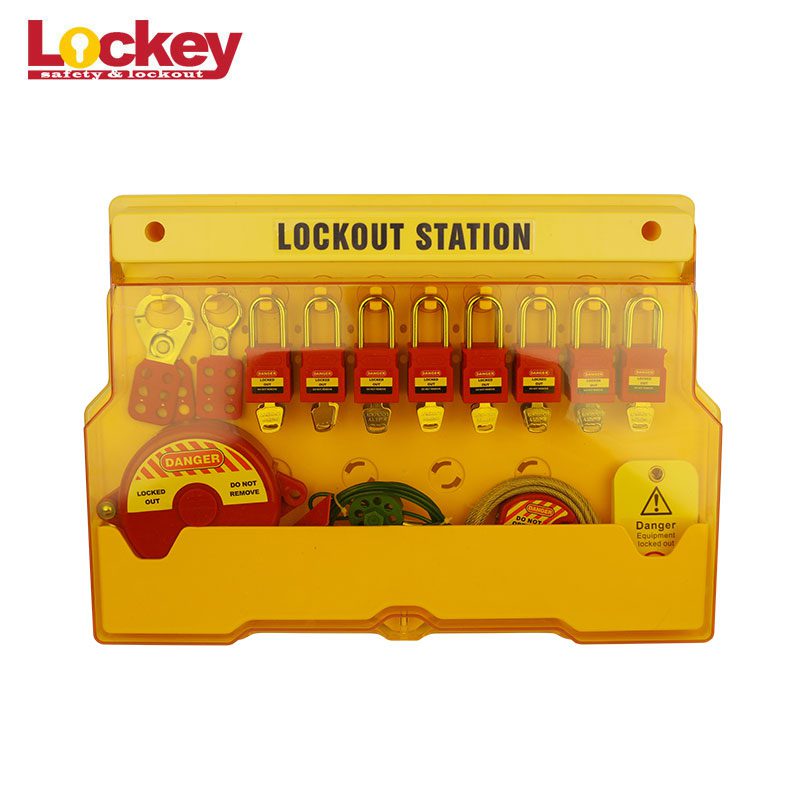

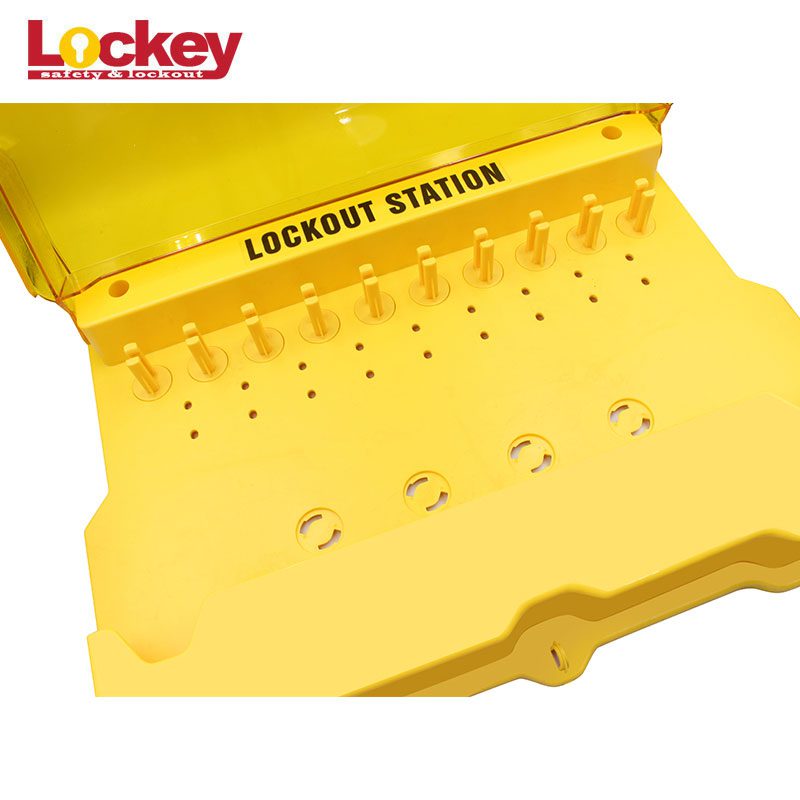

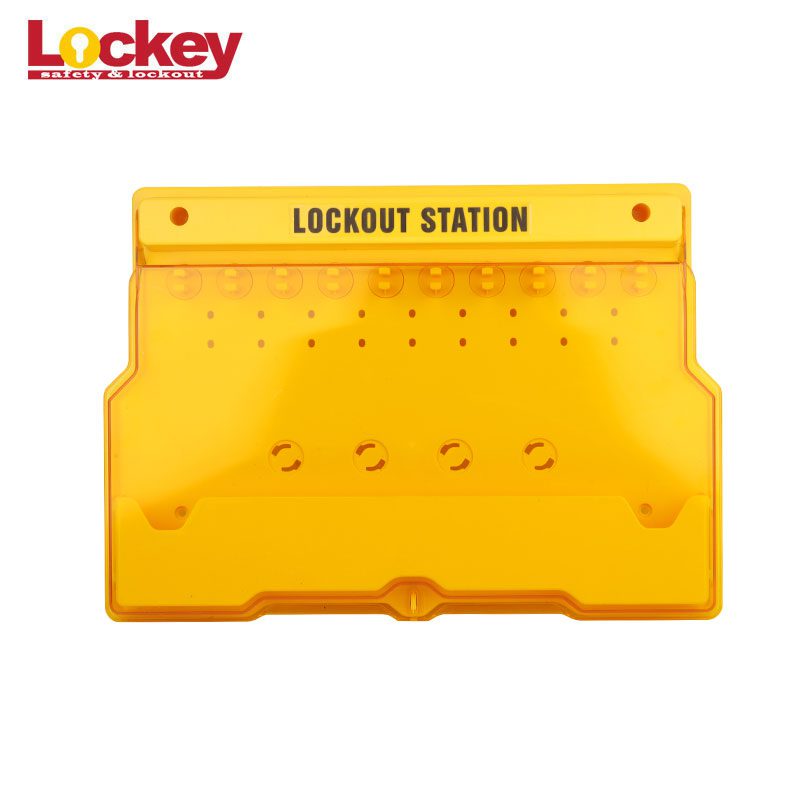

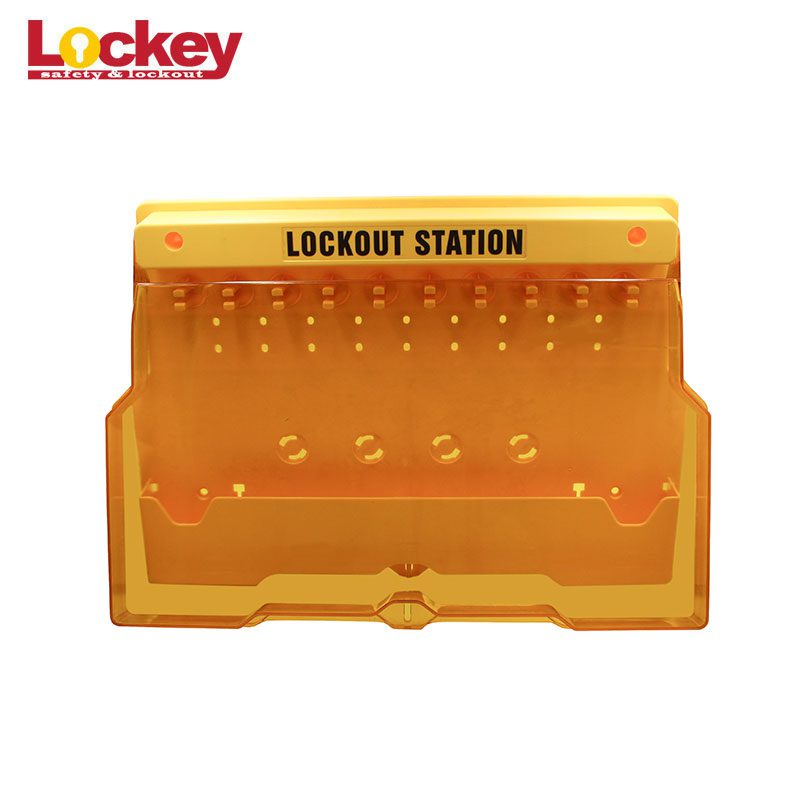

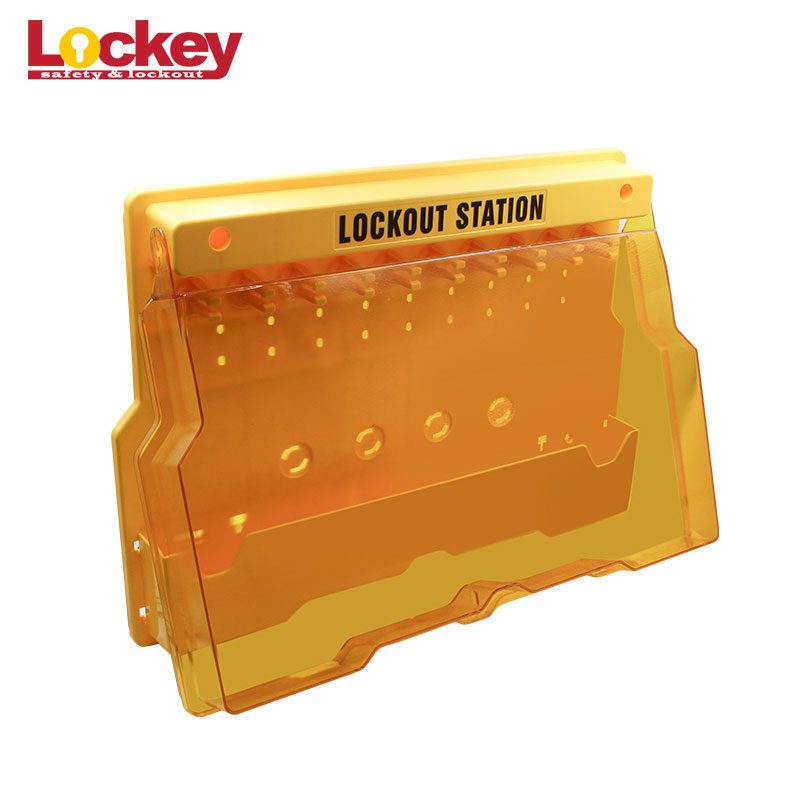

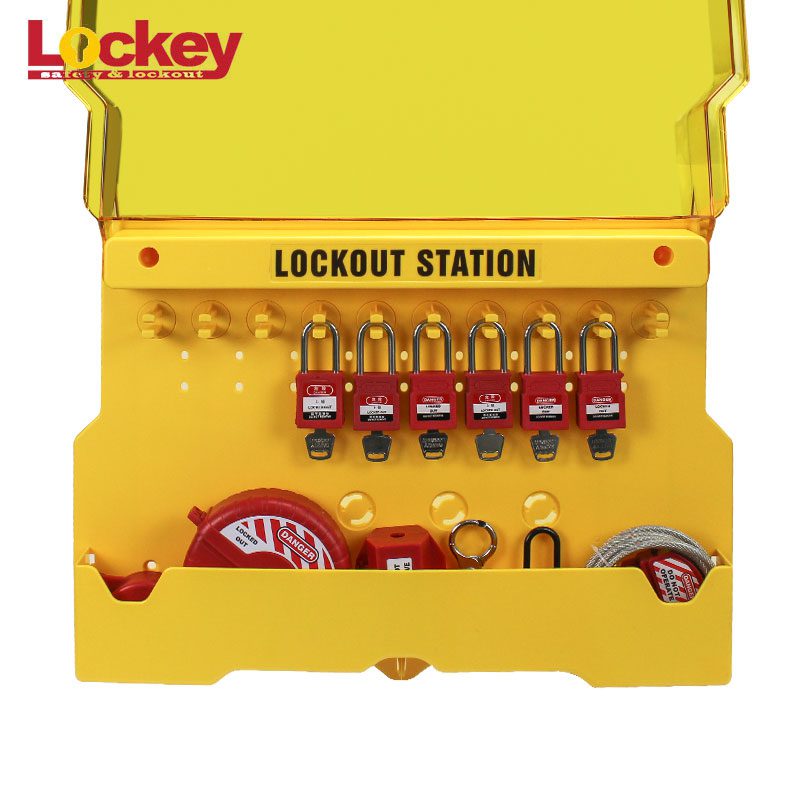

The PROLOCKEY Lockout Station is model LS03. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from engineering plastic PC.
- It’s one piece design, with a cover to lock out. Can accommodate padlocks, hasps, lockout tags etc.
- There’s a lockable combination padlock hole for locking out to limit access to authorized employees.
Specifications
| Model | LS03 |
|---|---|
| Material | PC |
| Total Length | 565mm |
| Body Width | 65mm |
| Body Height | 400mm |
| Keyhole Diameter | 10.5mm |
| Product Net Weight | 2.45kg |
| Service Temperature Range °F | -20℃-90℃ |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
