Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
NH04

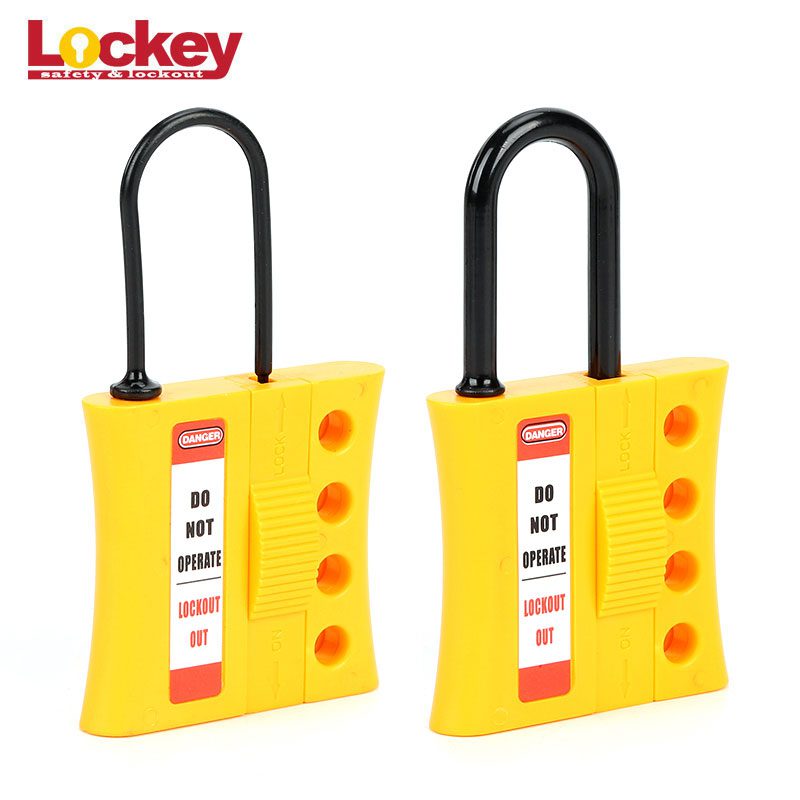

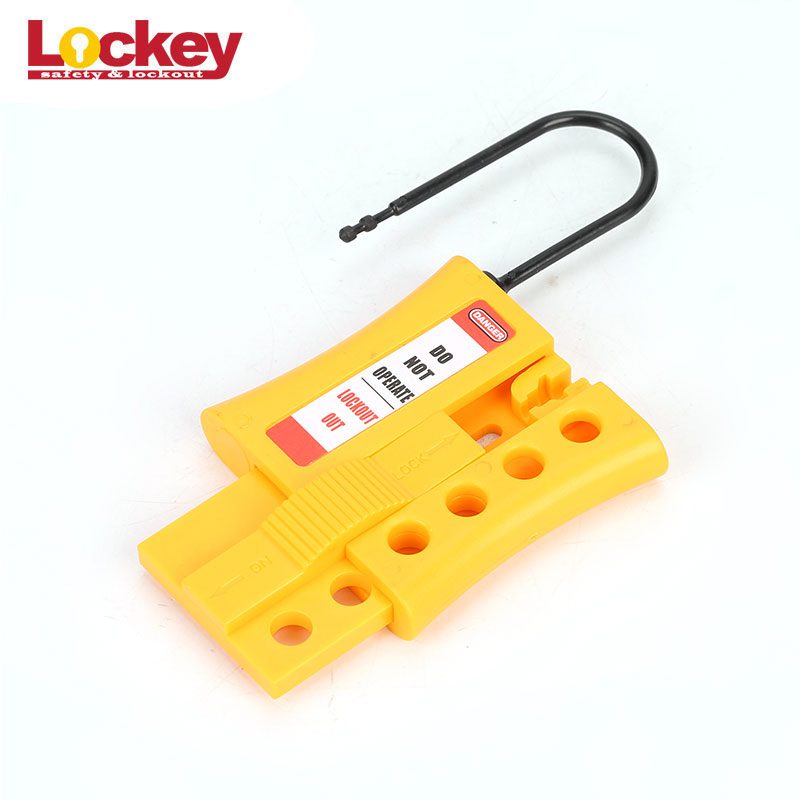

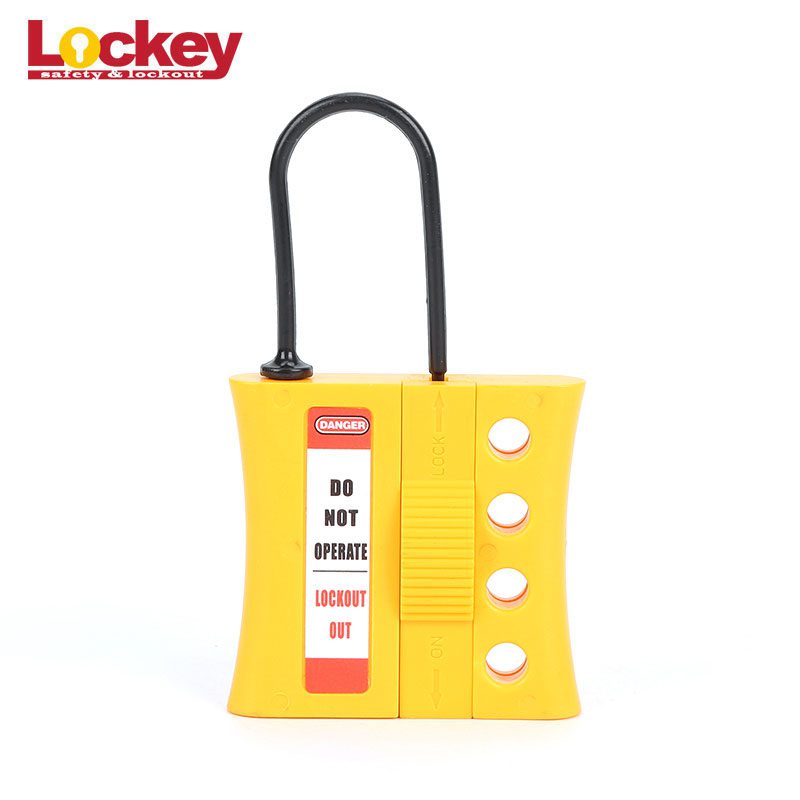

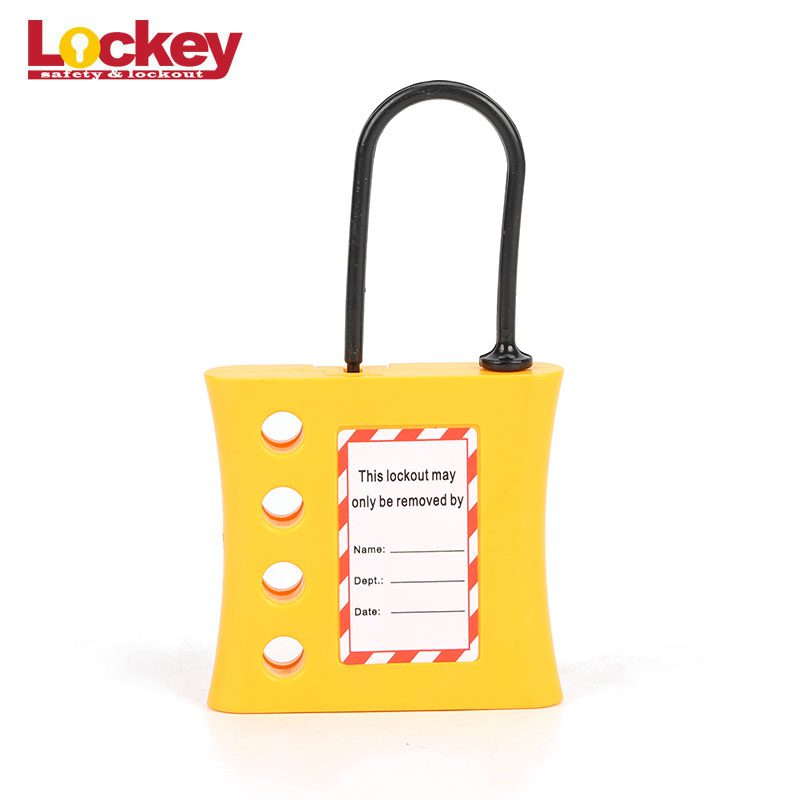

Nylon Lockout Hasp — NH04
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Nylon Lockout Hasp is model NH04. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from nylon.

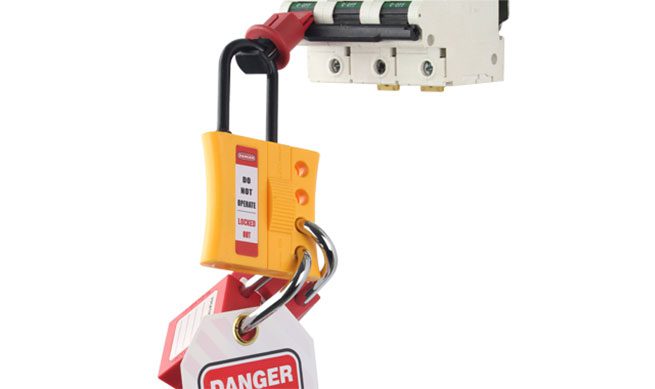

- Non-conductive body, applied to lock out electric power isolations with high requirements on corrosive or explosion-proof places.
- With 3mm or 6mm shackle diameter available.
Specifications
| Model | NH04 |
|---|---|
| Material | ABS Body |
| Jaw Size | 44mm(H) |
| Lock Holes | 7mm |
| Shackle Diameter | 3mm |
| Total Length | 61.5mm |
| Body Width | 12.8mm |
| Body Height | 105mm |
| Product Net Weight | 0.033kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
Product details
More than the device
Support for the complete requirement.
Share the application, quantity, destination and customization details. PROLOCKEY can help coordinate product selection, configuration and supporting documents.
OEM & customization
Discuss color, logo, laser marking, labeling, packaging, keying and project-specific combinations.
Applicable documents
Confirm product specifications, certificates, test reports and documentation relevant to the item and market.
Order coordination
Align quantity, production, packing, freight and export requirements with the sales and operations team.
Certification scope and lead time vary by product and order. Ask the sales team to confirm the applicable documentation and schedule before purchase.
