PIT
Pin In Toggles Circuit Breaker Lockout — PIT
Pricing is provided by quotation based on quantity, specification, and destination.
Product details

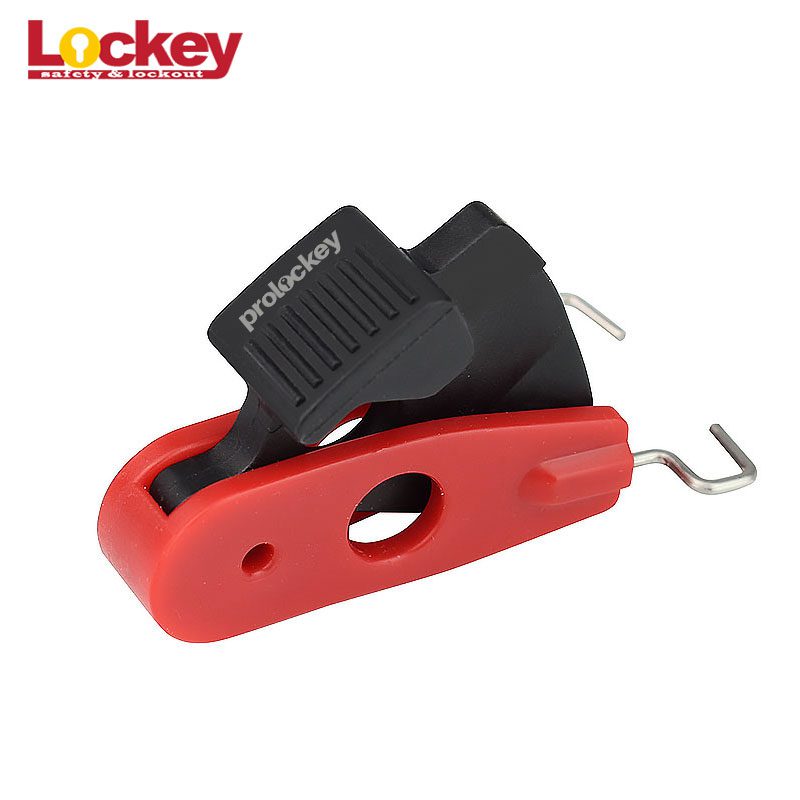

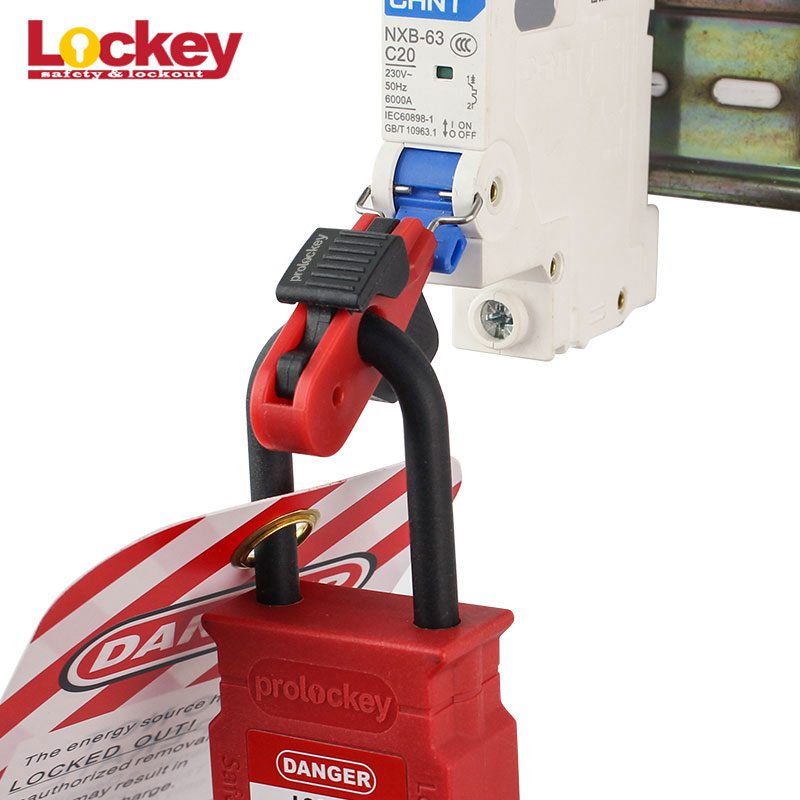

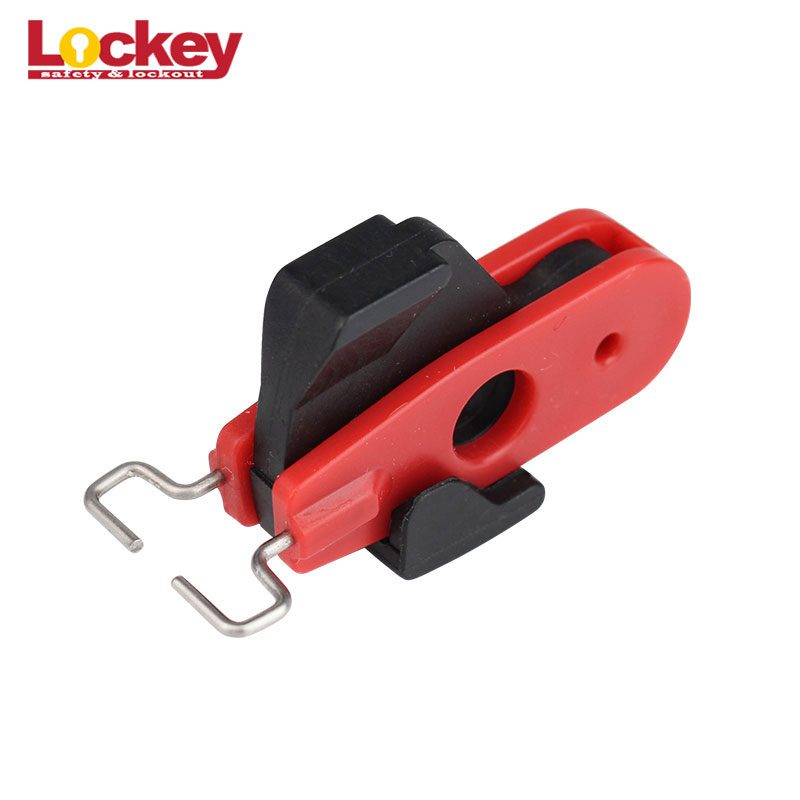

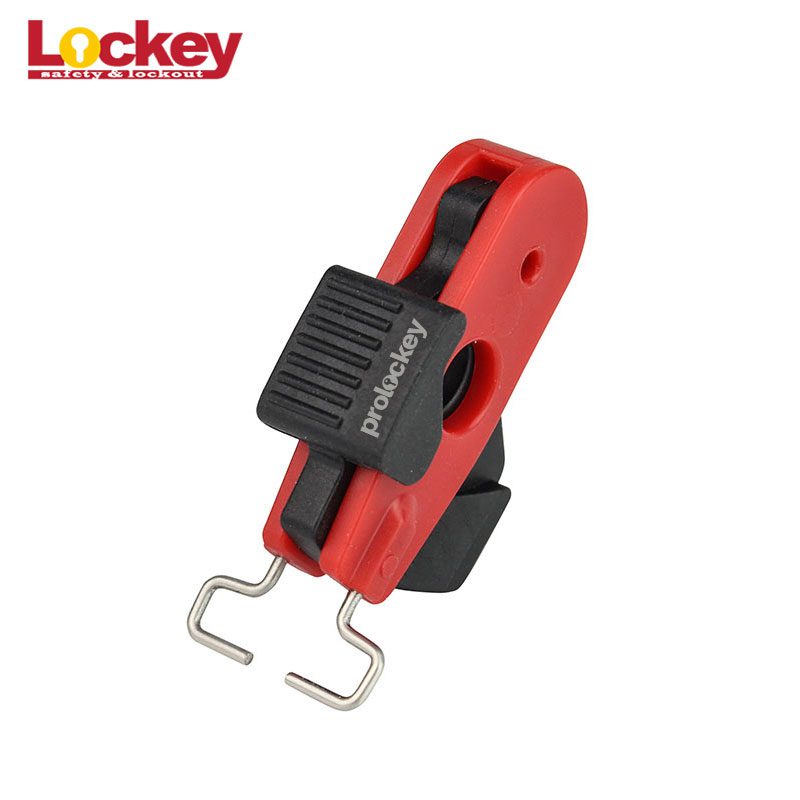

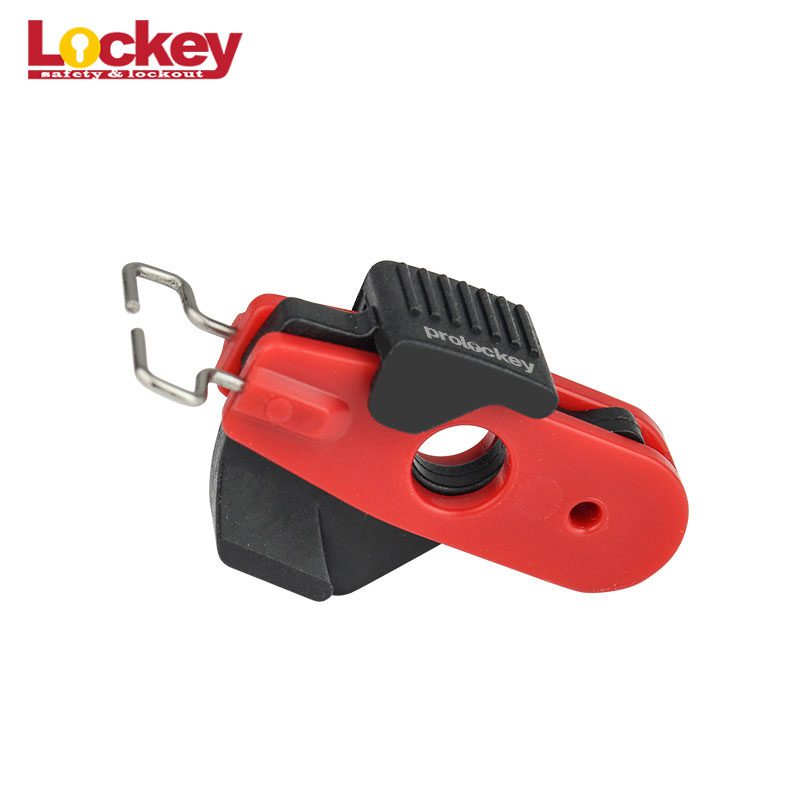

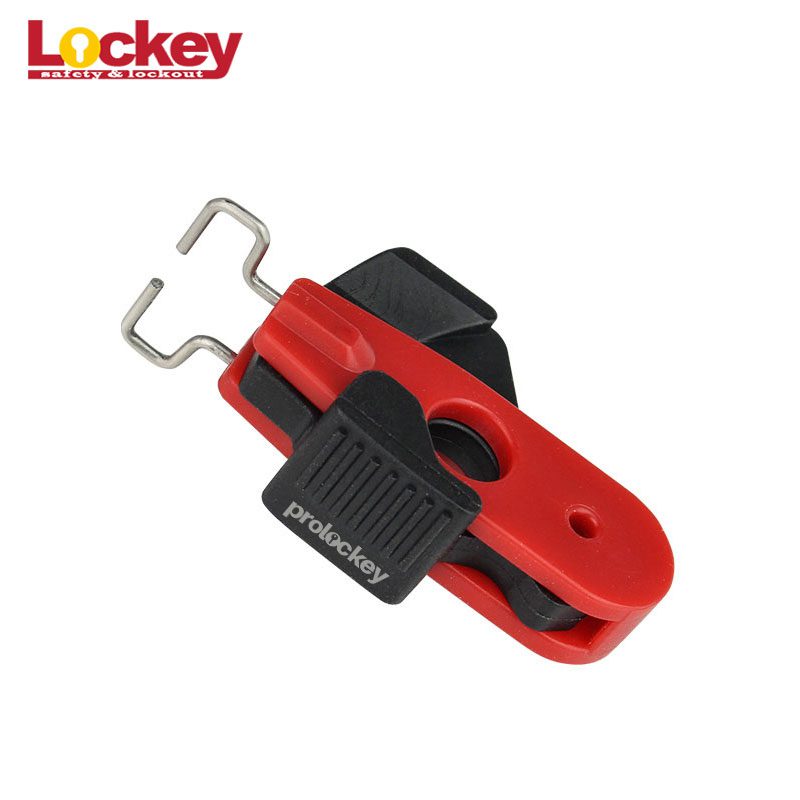

The PROLOCKEY Pin In Toggles Circuit Breaker Lockout is model PIT. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from durable ABS，temperature resistance -20℃ to +100℃
- Miniature circuit breakers with a lock hole distance of 13 mm.
- Accepts lock shackles up to 9/32″ (7.5mm)in diameter.
Specifications
| Model | PIT |
|---|---|
| Material | ABS750 |
| Service Temperature Range °F | -20℃-120℃ |
| Lock Holes | 7.8mm |
| Total Length | 49.5mm |
| Body Width | 13.5mm |
| Body Height | 22.5mm |
| Product Net Weight | 0.007kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
