Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
POT

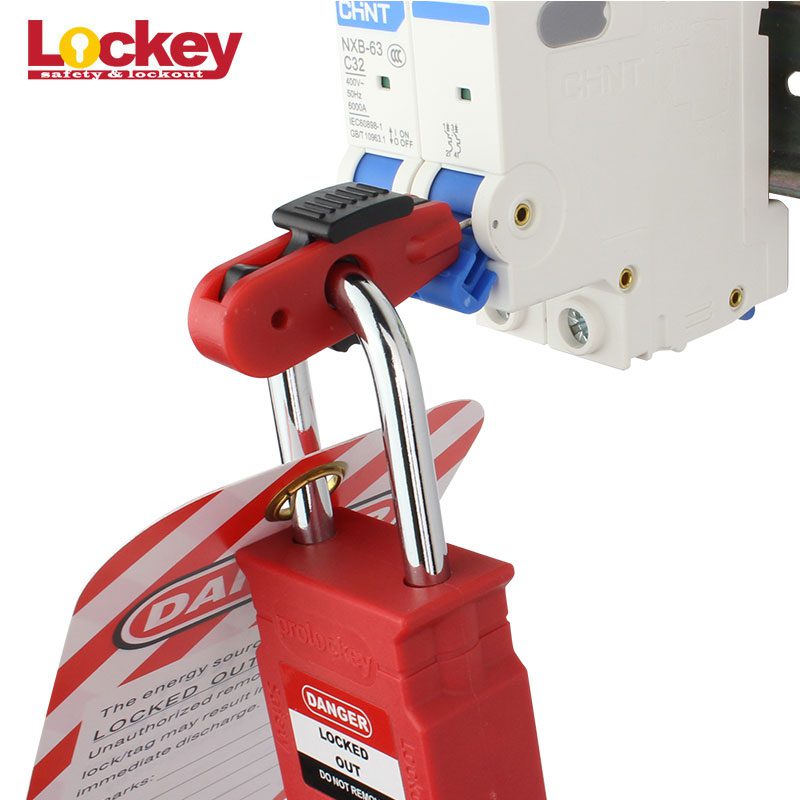

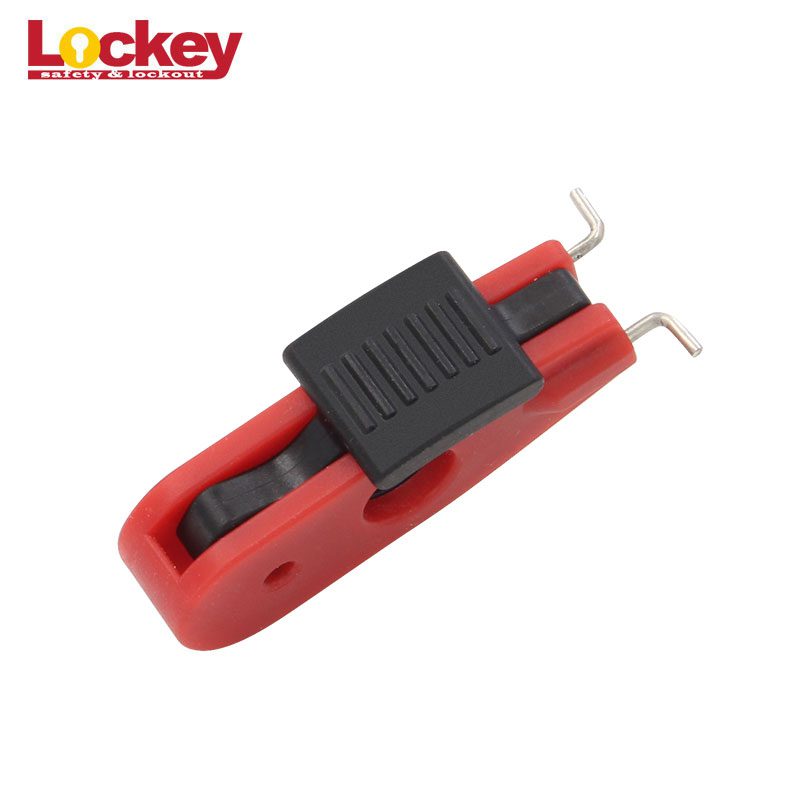

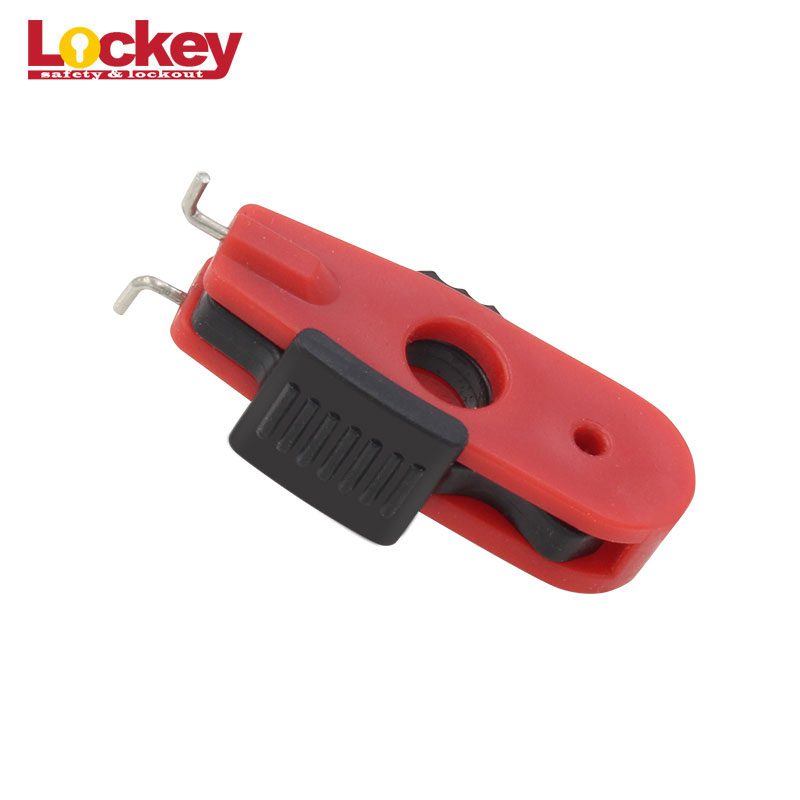

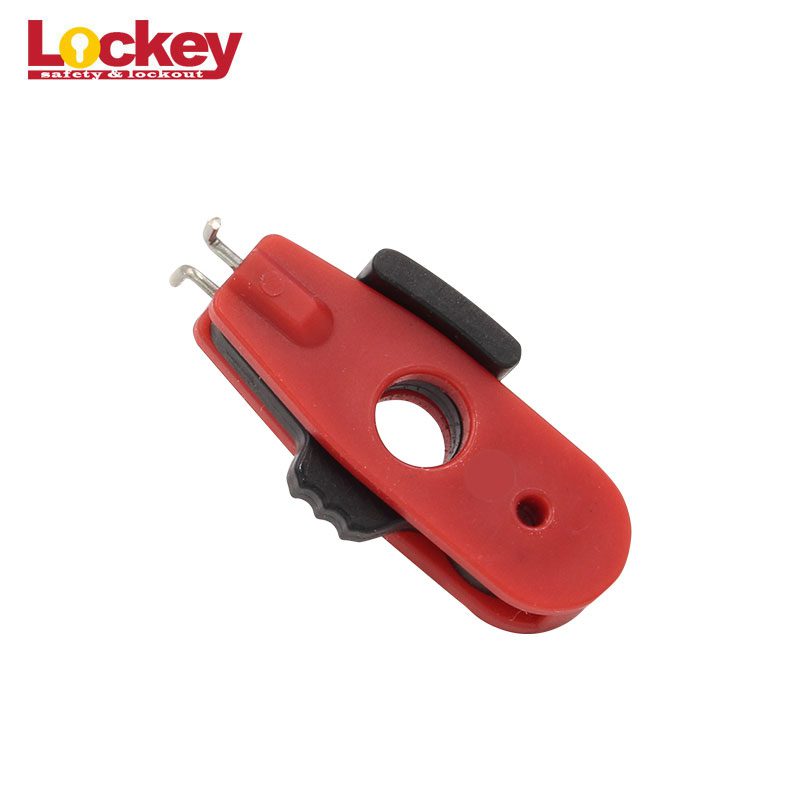

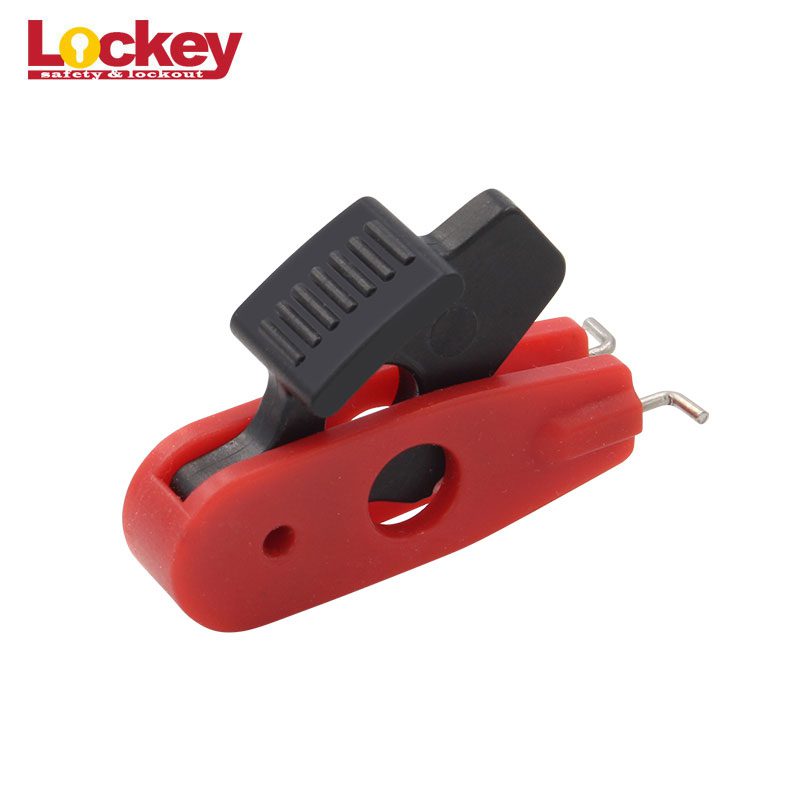

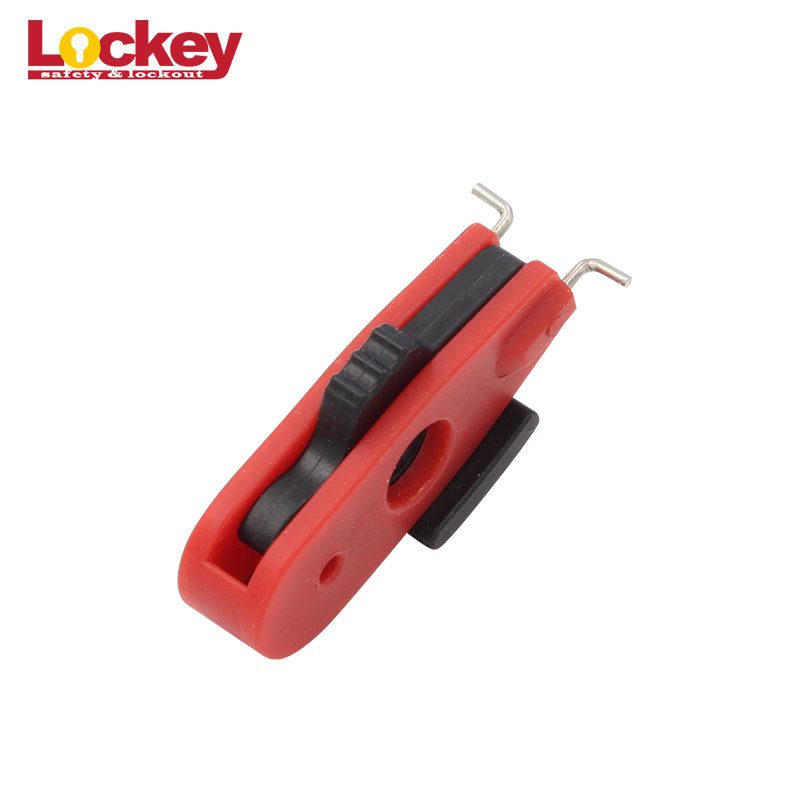

Pin Out Toggles Circuit Breaker Lockout — POT
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Pin Out Toggles Circuit Breaker Lockout is model POT. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made of ABS engineering plastic and PC polycarbonate.
- Suitable for most miniature circuit breakers with an opening of 11 mm or less
- at the handle part.
- Single person management, lock hole diameter 7.8mm.
Specifications
| Model | POT |
|---|---|
| Material | ABS750 |
| Service Temperature Range °F | -20℃-120℃ |
| Lock Holes | 7.8mm |
| Total Length | 44mm |
| Body Width | 13mm |
| Body Height | 21mm |
| Product Net Weight | 0.005kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
