Application guidance
Match the product family and configuration to the energy-isolation point and maintenance task.
POWT

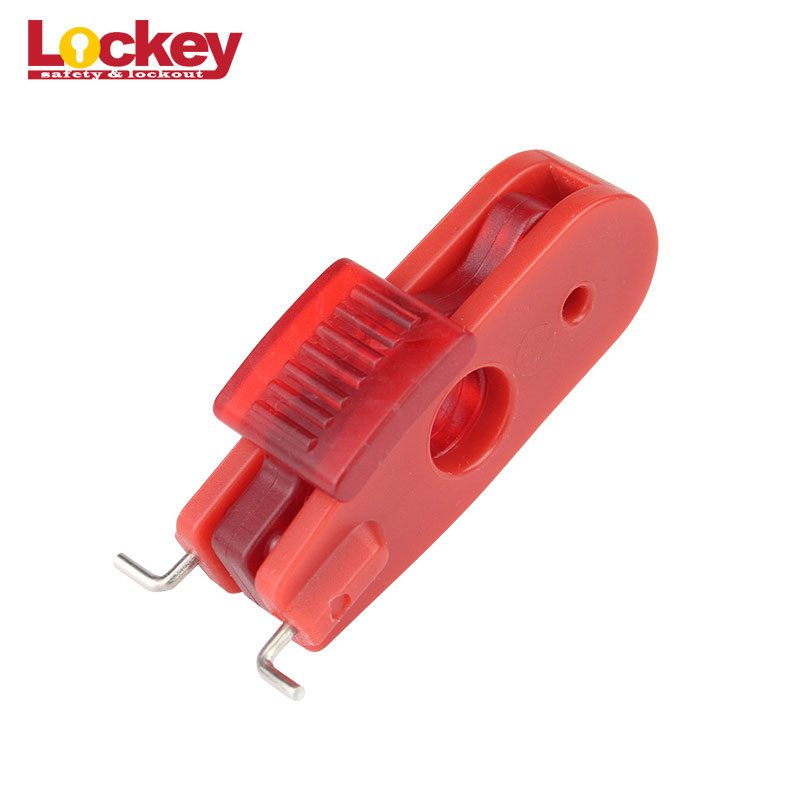

Pin Out Wide Toggles Circuit Breaker Lockout — POWT
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Pin Out Wide Toggles Circuit Breaker Lockout is model POWT. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made of ABS engineering plastic and PC polycarbonate.
- Suitable for most miniature circuit breakers with an opening of 11 mm and 13mm at the handle part.
- Single person management, lock hole diameter 7.8mm.
Specifications
| Model | POWT |
|---|---|
| Material | ABS750 |
| Service Temperature Range °F | -20℃-120℃ |
| Lock Holes | 7.8mm |
| Total Length | 44mm |
| Body Width | 13mm |
| Body Height | 21mm |
| Product Net Weight | 0.005kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
Product details
More than the device
Support for the complete requirement.
Share the application, quantity, destination and customization details. PROLOCKEY can help coordinate product selection, configuration and supporting documents.
OEM & customization
Discuss color, logo, laser marking, labeling, packaging, keying and project-specific combinations.
Applicable documents
Confirm product specifications, certificates, test reports and documentation relevant to the item and market.
Order coordination
Align quantity, production, packing, freight and export requirements with the sales and operations team.
Certification scope and lead time vary by product and order. Ask the sales team to confirm the applicable documentation and schedule before purchase.
