SBL05
Emergency Stop Button Lockout — SBL05
Pricing is provided by quotation based on quantity, specification, and destination.
Product details

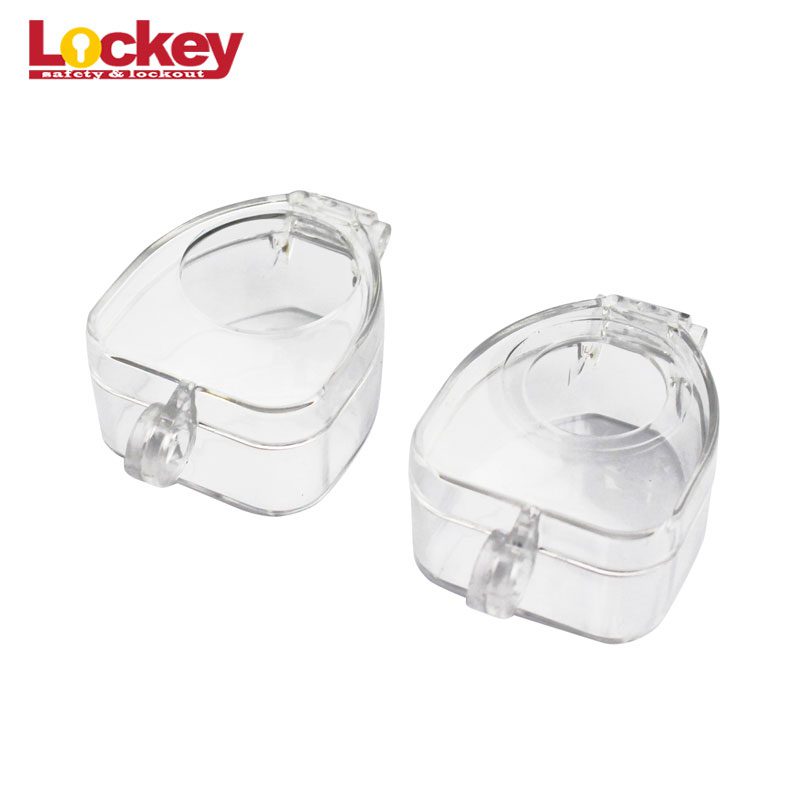

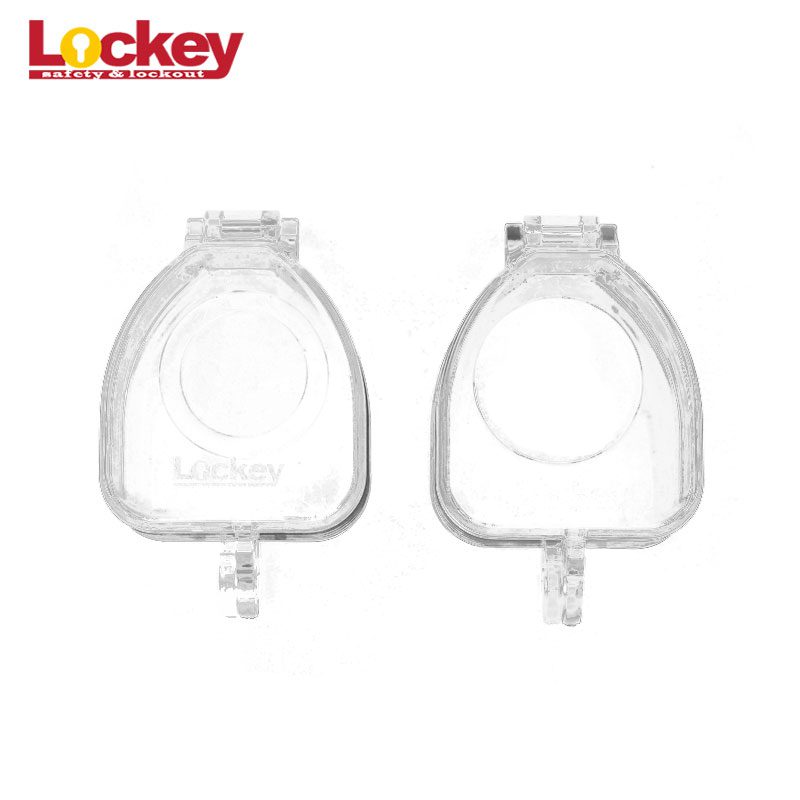

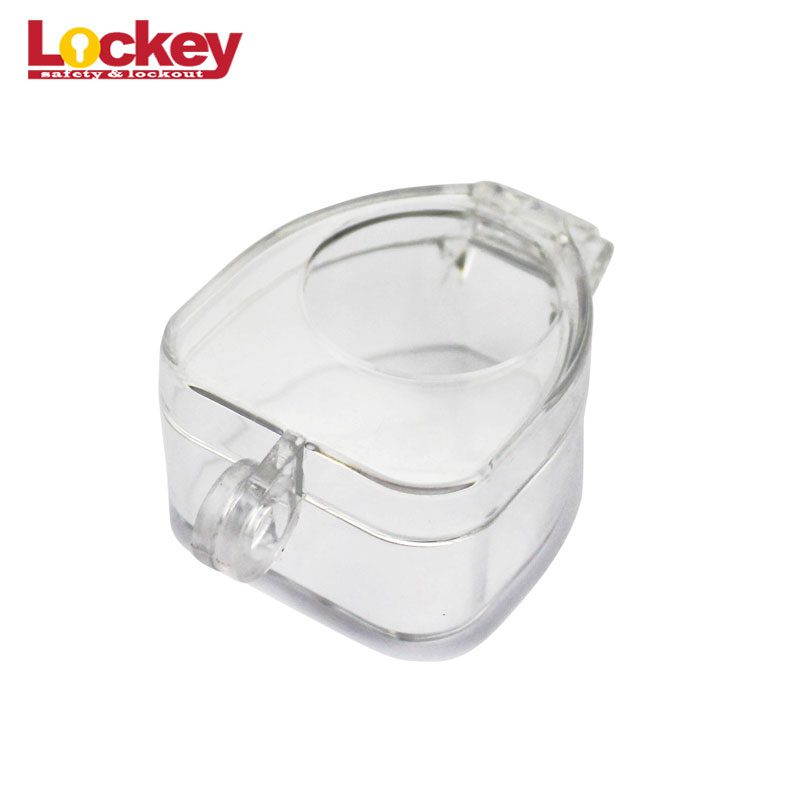

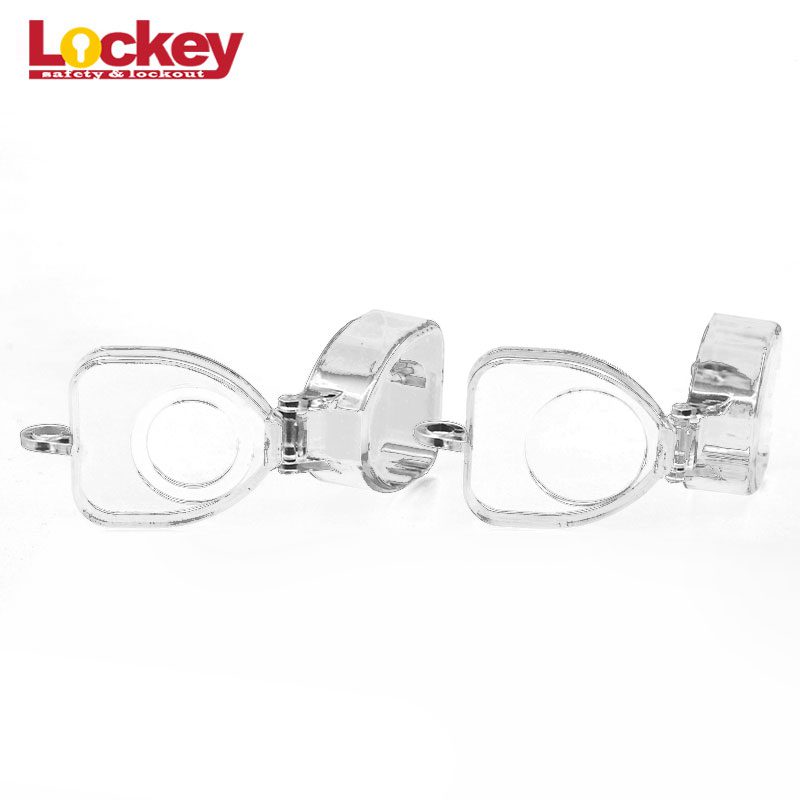

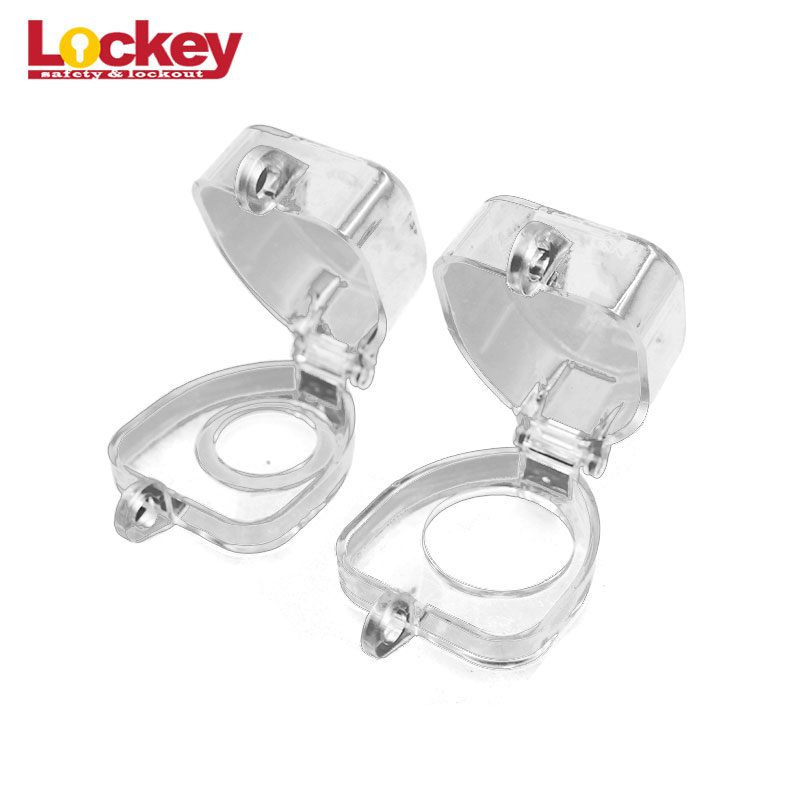

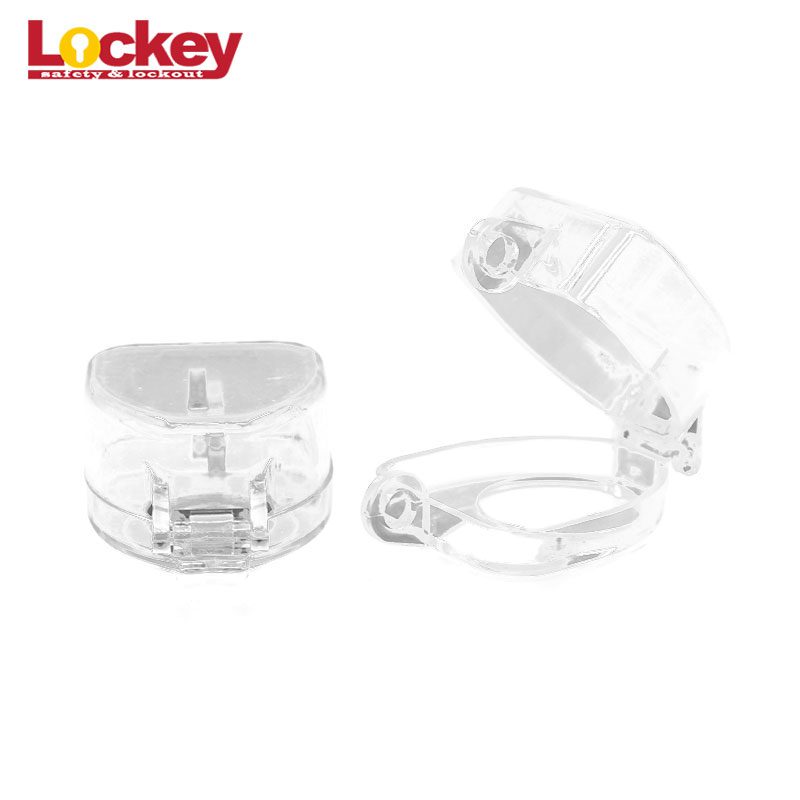

The PROLOCKEY Emergency Stop Button Lockout is model SBL05. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made of transparent PC.
- Prohibits access to a switch or control.
- Fits 22.5-30mm diameter switches.
- Prevents workers from operating for a mistake.
Specifications
| Model | SBL05 |
|---|---|
| Material | PC |
| Service Temperature Range °F | – 20℃-90℃ |
| Lock Holes | 7mm |
| Total Length | 70.5mm |
| Body Width | 44mm |
| Body Height | 27mm |
| Hole Diameter | 22.5mm,30mm |
| Product Net Weight | 0.017kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
