SBVL02

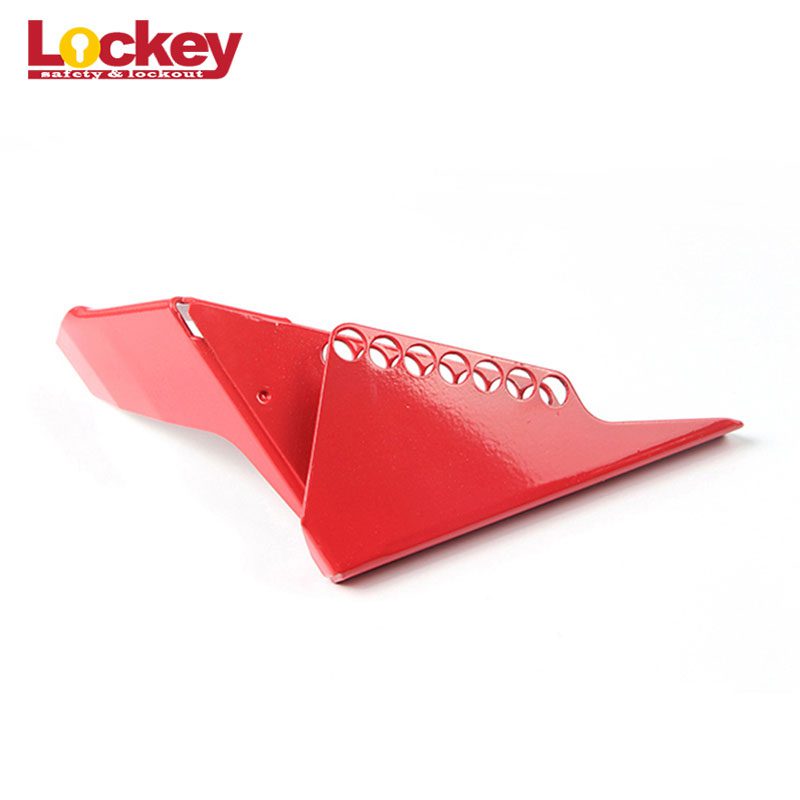

Standard Ball Valve Lockout — SBVL02
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Standard Ball Valve Lockout is model SBVL02. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from hardened steel, surface treatment by high temperature spraying, rust proof.
- The single-piece design locks can quarter-turn ball valves in off position.
- Used on ball valve sizes from 6.35mm (1/4”) to 25mm (1”), hole diameter is 3/8”.
Specifications
| Model | SBVL02 |
|---|---|
| Material | Steel |
| Service Temperature Range °F | -40℃-280℃ |
| Lock Holes | 9.8mm |
| Total Length | 110mm |
| Body Width | 155mm |
| Body Height | 15mm |
| Product Net Weight | 0.342kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
