SGVL11
Standard Gate Valve Lockout — SGVL11
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Standard Gate Valve Lockout is model SGVL11. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made from durable ABS, withstand temperature from -20℃ to +90℃, metal free.
- Once locked, it covers wholly around the hand wheel and prevent the valve wheel
- from being turned.
- Two parts design can be combined into one when storing and carrying which reduce the half restore space.
- Accept up to 2 padlocks, locking shackle max diameter 7.5mm.

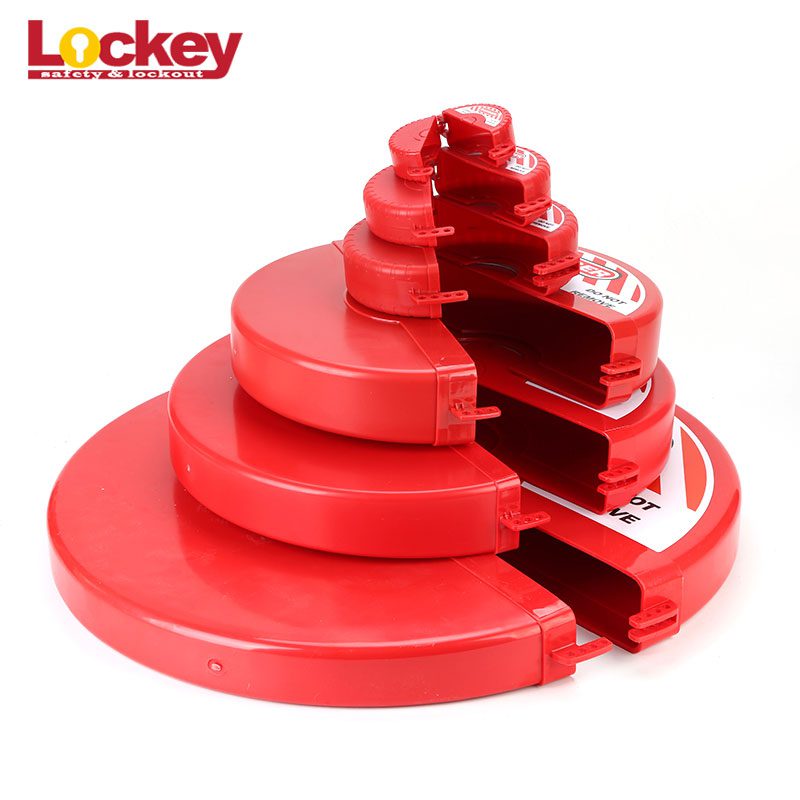

- Available in 7 sizes and red color, other colors can be customized, providing English tag.
Specifications
| Model | SGVL11 |
|---|---|
| Body Material | ABS750 |
| Rivet Material | Stainless steel |
| Service Temperature Range °F | -20℃-90℃ |
| Lock Holes | 9.8mm |
| Outer diameter(mm) | 83 |
| Central diameter(mm) | 16 |
| Hole Diameter(mm) | 19 |
| Inner Height(mm) | 28 |
| Product Net Weight:(kg) | 0.047 |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
