VSBL04

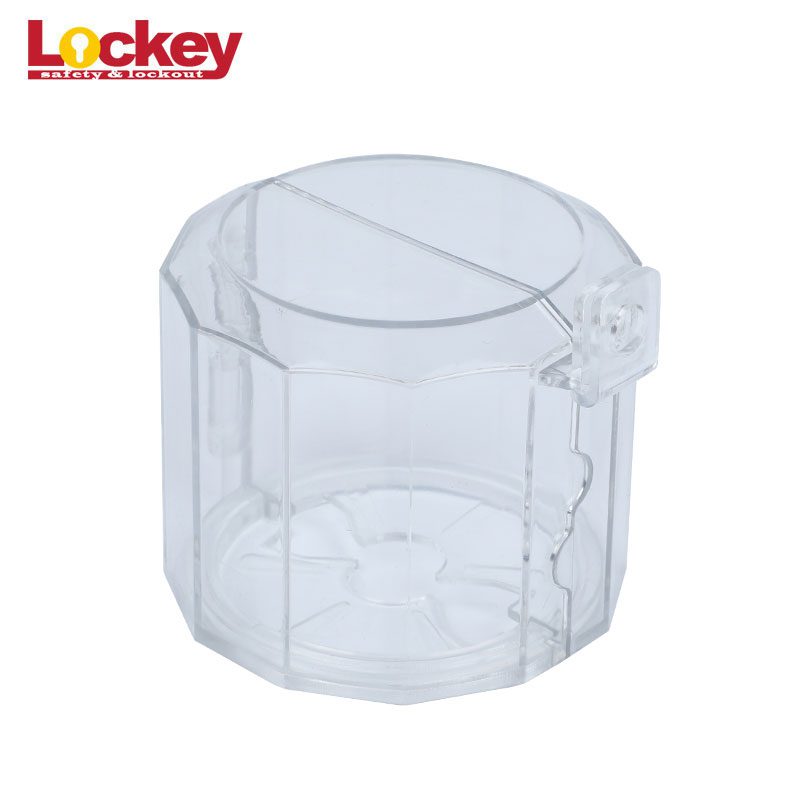

Customized Valve Lockout — VSBL04
Pricing is provided by quotation based on quantity, specification, and destination.
Product details
The PROLOCKEY Customized Valve Lockout is model VSBL04. Use the specifications and product images below to confirm suitability for the intended lockout/tagout application.
Product features
- Made of transparent PC, withstand temperature from -60℃ to +120℃.
- Prevent the valve handles from being turned when locked out.
- Using the two semicircles to accommodate double lock valves.
- Accommodate buttons up to 60mm tall.
Specifications
| Model | VSBL04 |
|---|---|
| Material | PC2805 |
| Service Temperature Range °F | -20℃-120℃ |
| Lock Holes | 8mm |
| Total diameter | 72mm |
| Inner diameter | 67mm |
| Body Height | 62mm |
| Locking diameter | 14.5mm |
| Product Net Weight | 0.059kg |
Selection guidance
Confirm the model, dimensions, application fit and lock-hole compatibility before ordering. Installation and energy-isolation procedures must follow the site's authorized lockout/tagout program.
